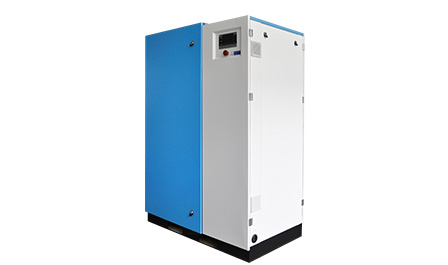

Three-unit oil-free scroll air compressor

● Power: 11-16.5KW

● Flow rate: 1.2-1.8 m³/min

● Pressure range: 0.8-1.0 MPa

Three-unit oil-free scroll air compressor parameter

Technical Parameters
No.	Product		Unit	Parameter
1	Model			KC11-A8T/A10T
2	Type			Oil-free Scroll Air Compressor
3	Installation Method			Foundationless Installation
4	Rated Air Delivery		L/min	1200～1080
5	Rated Discharge Pressure		MPa	0.8～1.0
6	Total Power		kW	11
7	Transmission Method			Belt
8	Cooling Method			Air Cooling
9	Lubricant Amount for Compression		L	None
10	Motor	Power	kW	3.7
		Energy Efficiency Class		IE3
		Voltage	V	3P/380V
		Protection Class		IP55
		Insulation Class		F
11	Net Weight		kg	430
12	Noise		dB	≤66
13	Dimensions (L×W×H)		mm	12257551765
14	Outlet Pipe Diameter		INCH	3/4

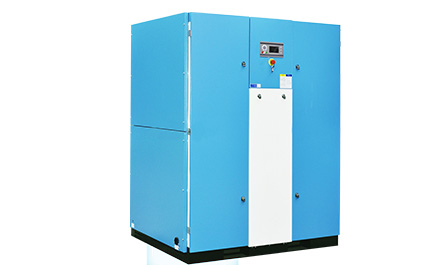

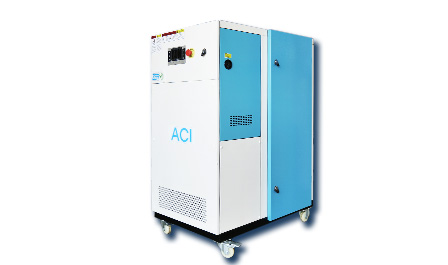

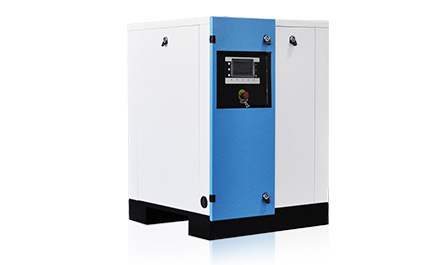

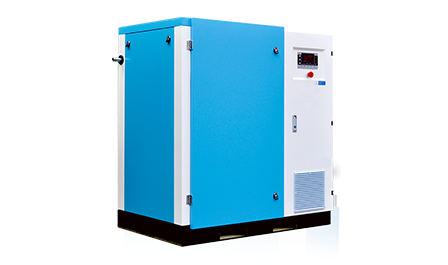

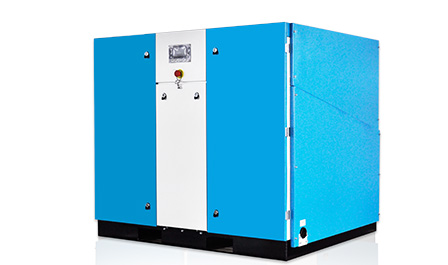

Display of oil-free scroll air compressor equipmentThis is only a part of the models

ConfigurationIntelligent, reliable, safe, and low-noise

vortex host

> The three-way sealed dynamic and static scroll design ensures smoother compression

> Low power, high efficiency, low vibration
> Durable and long-lasting
Efficient and durable motor

> Equipped with a main motor from a renowned brand, it boasts an energy efficiency rating of IE3

> The design standards fully comply with the requirements of air compressors for torque and load
High Temperature Check Valve

> It has a long service life, low pressure loss, good sealing performance, and quick response

> There is no noise or impact during work
Stable and durable pressure sensor

> Adopt internationally renowned brands

> Ensure the safety and stability of product usage

Air compressor control system

: Color control system

The SmartControl control system, independently developed by ACI, can control up to 16 oil-free scroll compressors.

single crew operation

Each host is controlled by an independent controller, ensuring that the failure of a single controller will not affect the operation of other hosts, thus achieving high reliability. The controller has passed CE certification and possesses powerful functions.

01: 100% oil-free

ISO8573-1 CLASS 0 oil-free certification from the German TÜV certification body

02: zero emission

Only condensate water is discharged, with no harmful substances emitted

03: Intelligent Control System

The color intelligent control system developed by our company can simultaneously connect multiple oil-free scroll units

04: low noise

Continuously innovating and optimizing the design of its internal structure enables the compressor to operate with low noise

05: Energy-saving, durable

The main motor is from a well-known brand, and its design standards meet the requirements of air compressors for torque and load
